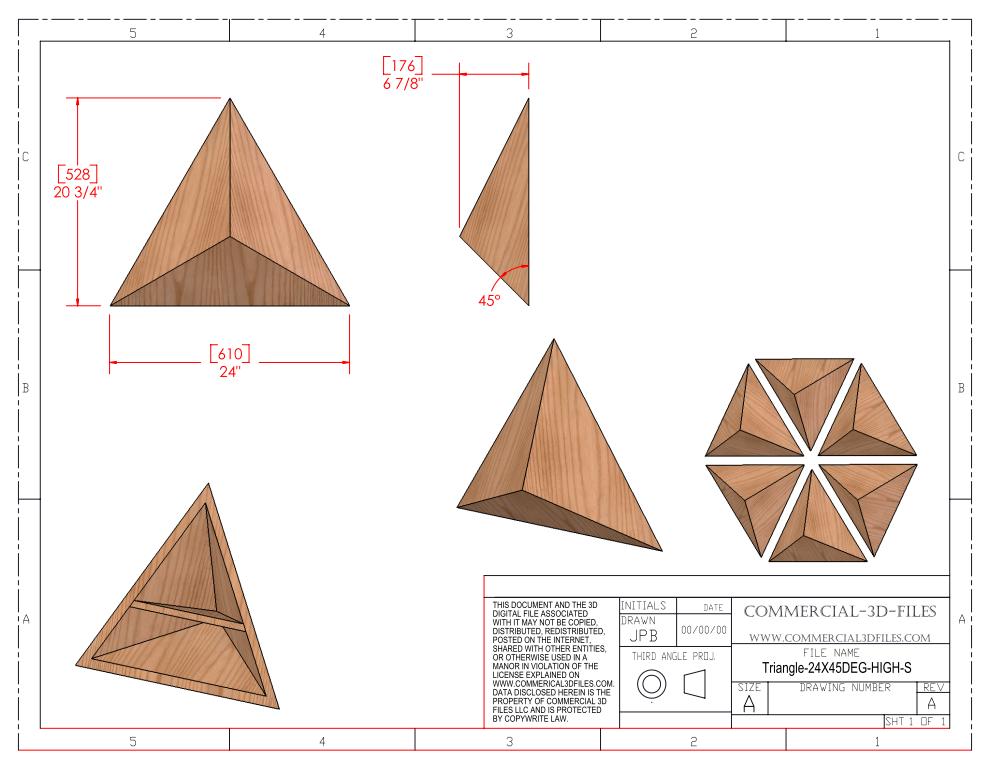

Triangular Pyramid Climbing Volume (Small, Tall) 24"(610mm) side x 45 deg Plans

Download Saw Cutting Instructions

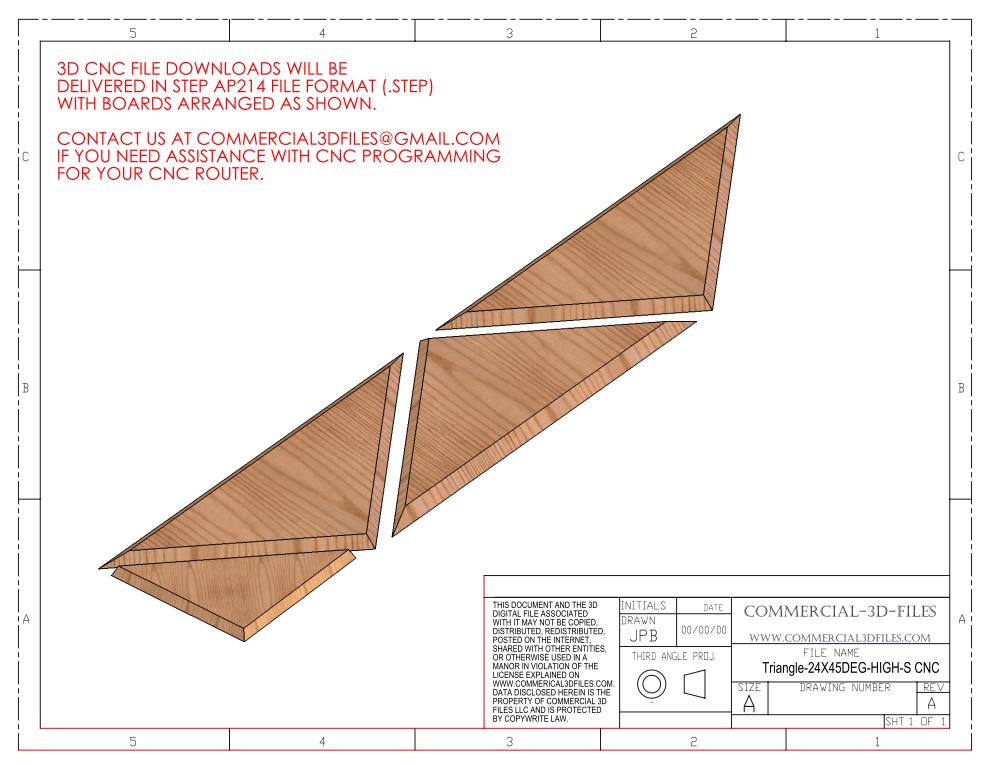

CNC Surfacing Illustration

Build This Small Size Triangular Pyramid Plywood Climbing Volume – DIY Plans with Metric & Inch Dimensions

Take your climbing wall to the next level with our professionally designed 2D drawing plans for plywood climbing volumes! Whether you're upgrading a commercial indoor climbing gym or building a home climbing wall, our downloadable plans make it easy to create durable, high-quality volumes that enhance grip variety and wall complexity.  If you plan to cut out these boards on a CNC router, there is an option to purchase the 3D STEP files you’ll need to program your cnc router.

✅ What’s Included:

• Clear, printable 2D plans with precise cut dimensions in both metric (mm) and imperial (inch) units
• Miter angles clearly specified for all edges – no guesswork!

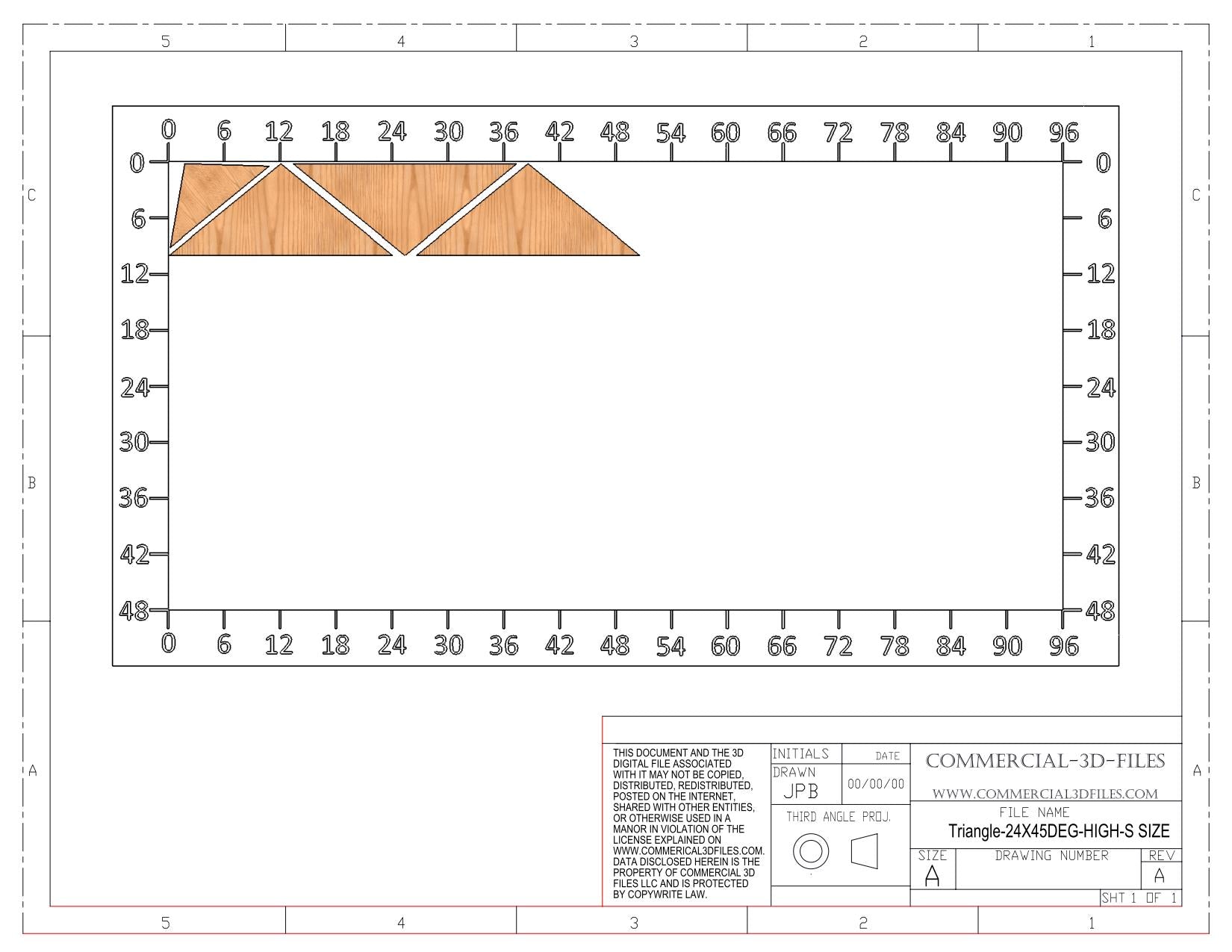

• Optimized layouts to minimize plywood waste and cutting mistakes
• Instructions to help you lay out and cut your boards like a pro

🧗 Perfect For:

• Home climbing wall builders
• Indoor climbing gym owners
• DIYers and route setters looking to expand their wall's potential

Each set of plans is designed with ease of construction in mind — just grab your plywood, tape measure, saw, and screws, and you’re on your way to building your own custom climbing volumes.

🔧 Save Time, Materials & Money

Avoid costly errors and wasted materials. Our plans are tested and formatted to make efficient use of standard plywood sheets, ensuring that every cut counts. Build smarter and climb harder!

Upon completion of this purchase you will receive an email with a link where you can download the files. You will have one week from the date of purchase to download your files, after which the link will become inactive.  Watch for the email with your download link and save a copy of your purchased drawings.

The 2D drawings for building this plywood climbing volume are copyright protected and contain a water mark. Any copy, reproduction, or distribution is strictly prohibited. Purchase of these drawings provides a limited use license for the purchaser only to use in building this volume, and purchase constitutes acceptance of these terms. It is unlawful to share these drawings or post them on any social media site or other location on the internet for public download or use.
