3D Printable Dust Boot Assembly in STL format for AVID CNC with HITECO-S-13-18-24-ER20 SPINDLE – Magnetic Quick-Disconnect Extraction Hose System & Removable Brush Holders
Contact us if you don't find what you need here. We can design anything for your equipment.
Upgrade your AVID CNC machine with this high-performance, 3D-designed dust boot assembly STL file, specifically engineered for the HITECO-S-13-18-24-ER20 SPINDLE. Designed for makers, woodworkers, and CNC enthusiasts, this precision-designed model is optimized for 3D printing and offers a powerful, tool-free solution for dust collection.
🔧 Key Features:
Custom Fit for HITECO-S-13-18-24-ER20 SPINDLE on AVID CNC – Securely clamps directly to your spindle without the need for custom adapters or mounting plates.

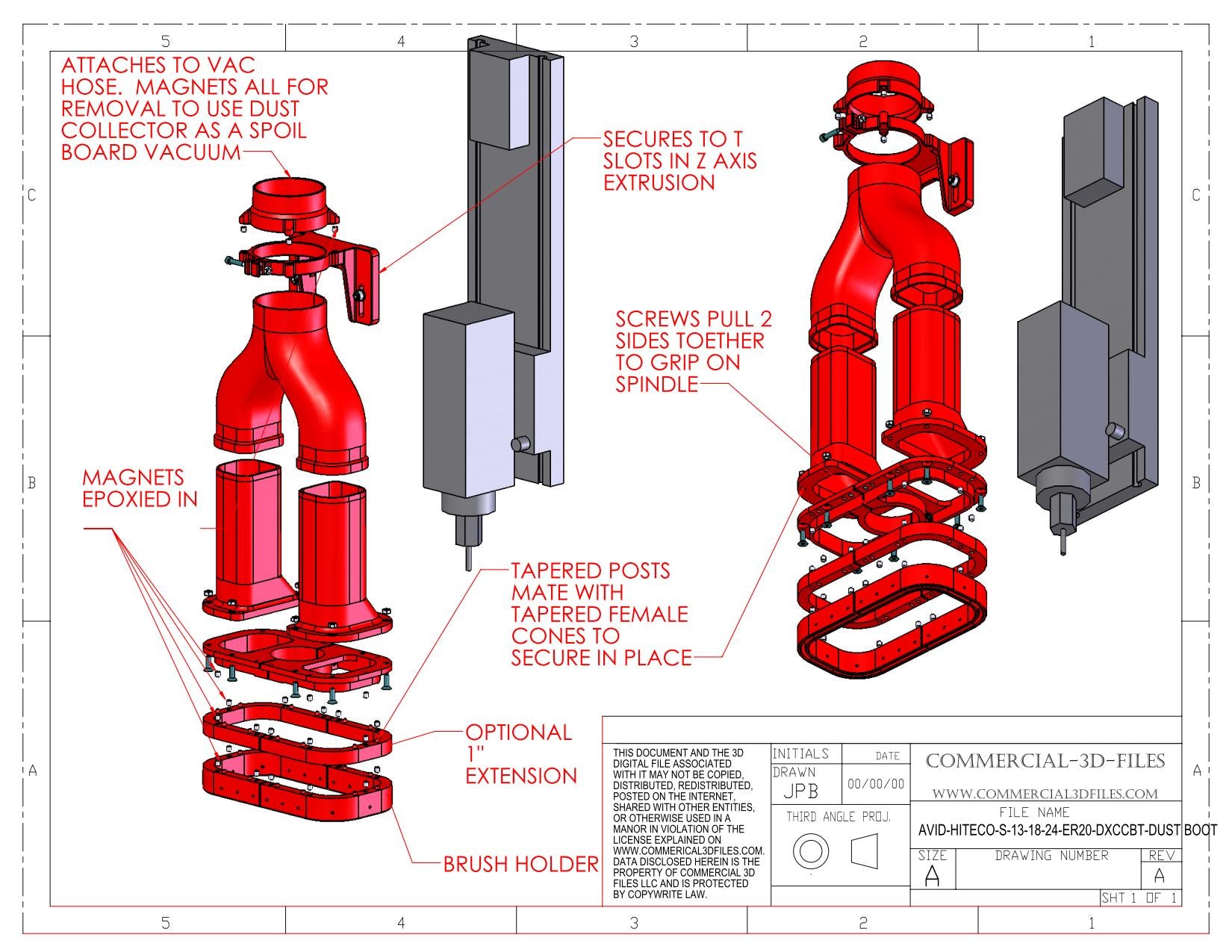

Quick-Change Brush Holder Design – Removable 2 piece dust brush holders allow you to quickly remove or replace brushes without raising the spindle off your material, minimizing setup time and boosting productivity.
Magnetic Alignment System – Precision alignment features and integrated neodymium magnets ensure reliable, repeatable connection of the brush holder.
Magnetic Quick-Disconnect Dust Hose Port – A 4" top-mounted quick-release fitting, also magnet-secured, lets you easily detach your dust collection hose to:
Connect to other fittings available for download on this website allowing you to vacuum your CNC spoilboard, workbench, or shop floor.
Quickly connect to other tools like your bandsaw, table saw, or other dust-producing machinery.
Fittings for other machinery available for download on this site, or we can design what you need.Just contact us for help.
Optimized for FDM/FFF 3D Printing – Clean geometry and mechanical design ensure this model prints reliably on most desktop 3D printers.
📦 What You Get:

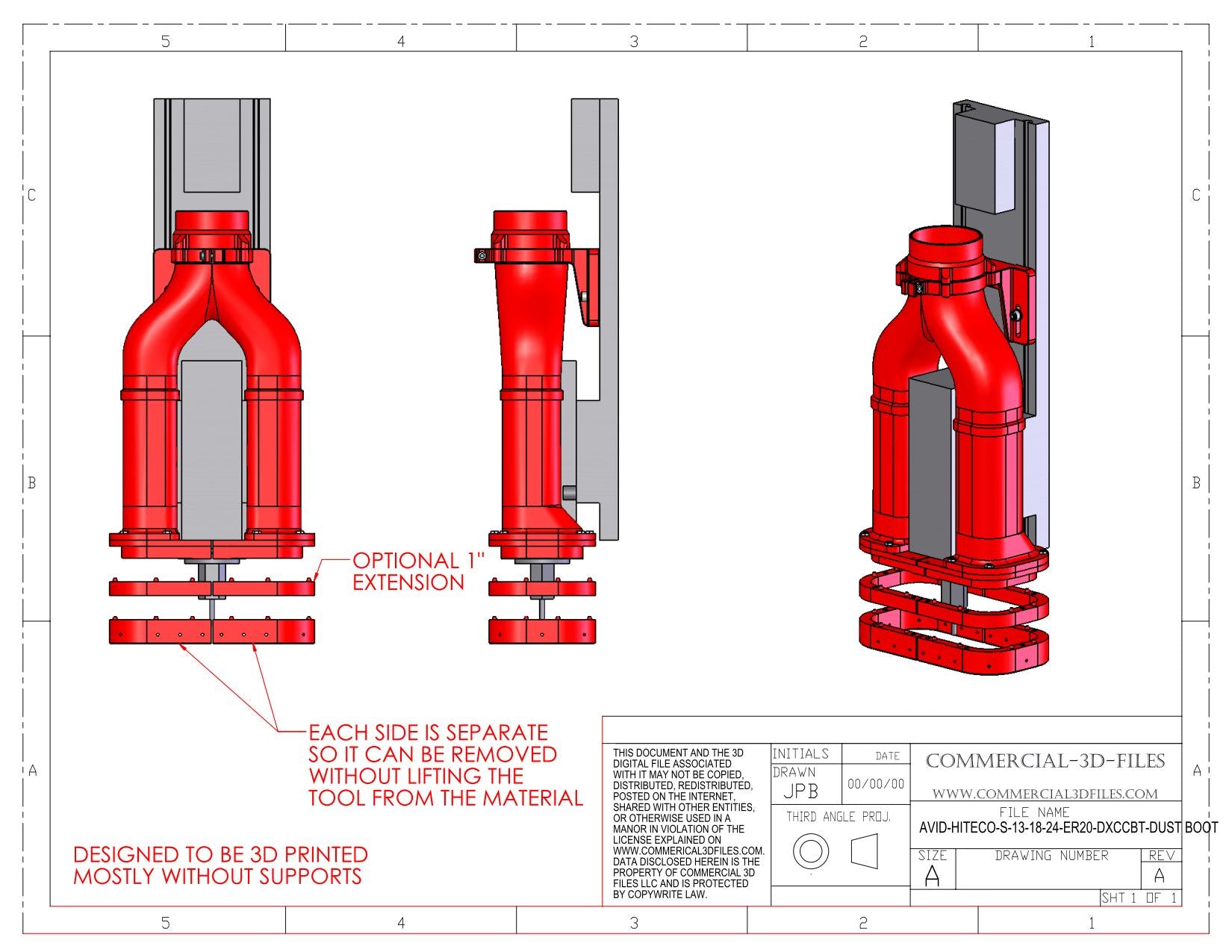

STL zip file for the full dust boot assembly, including:
All 3d printed parts from the dust brush to the quick disconnect fitting

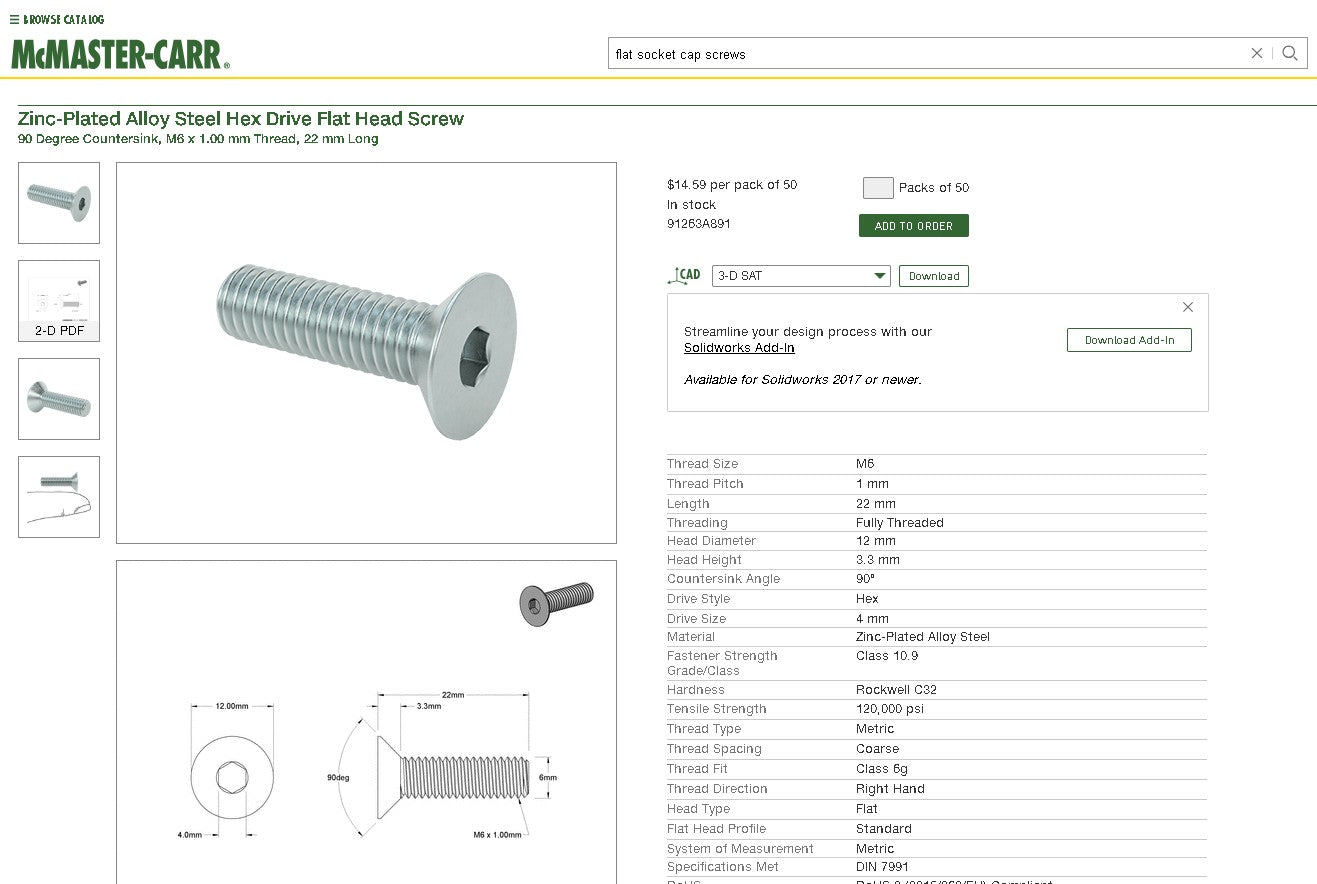

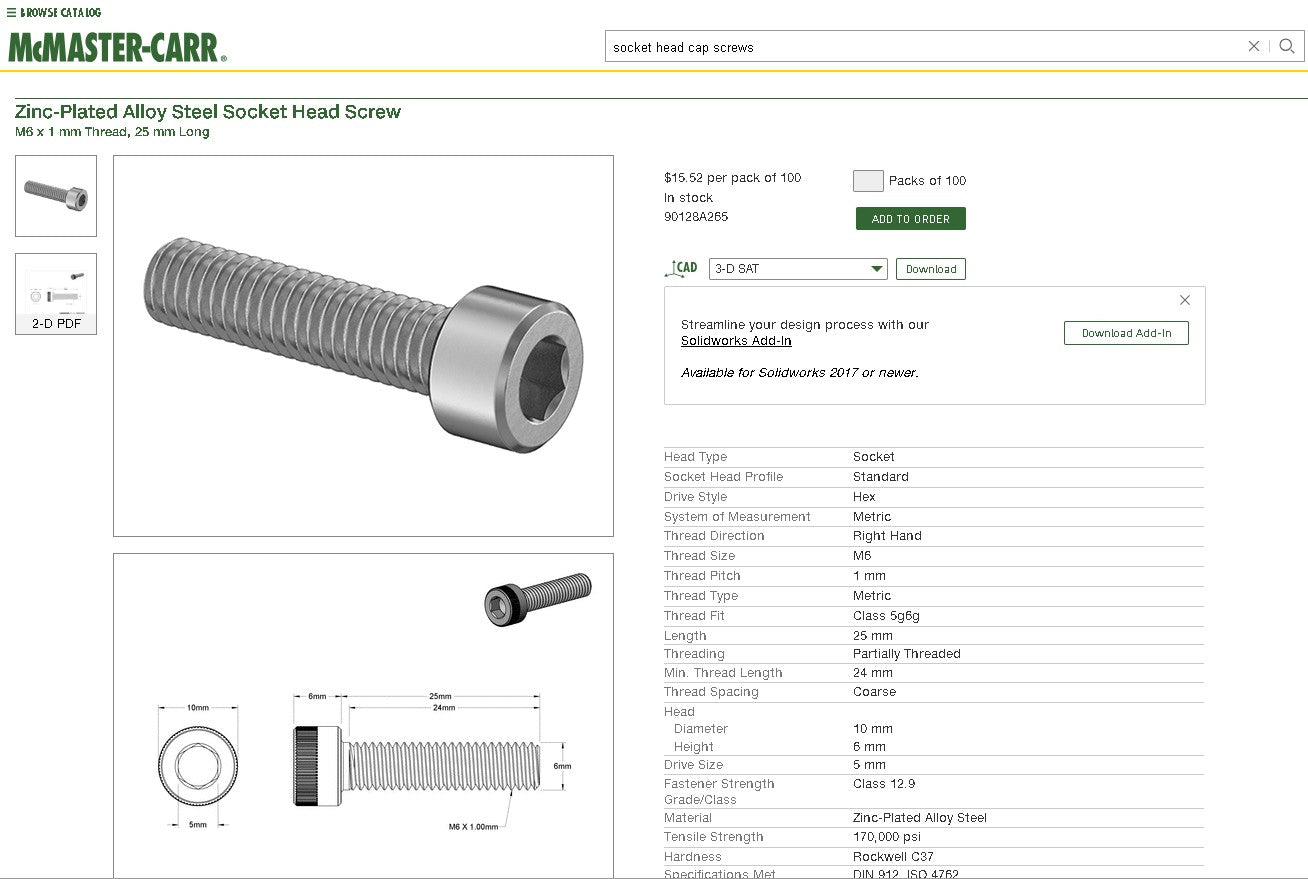

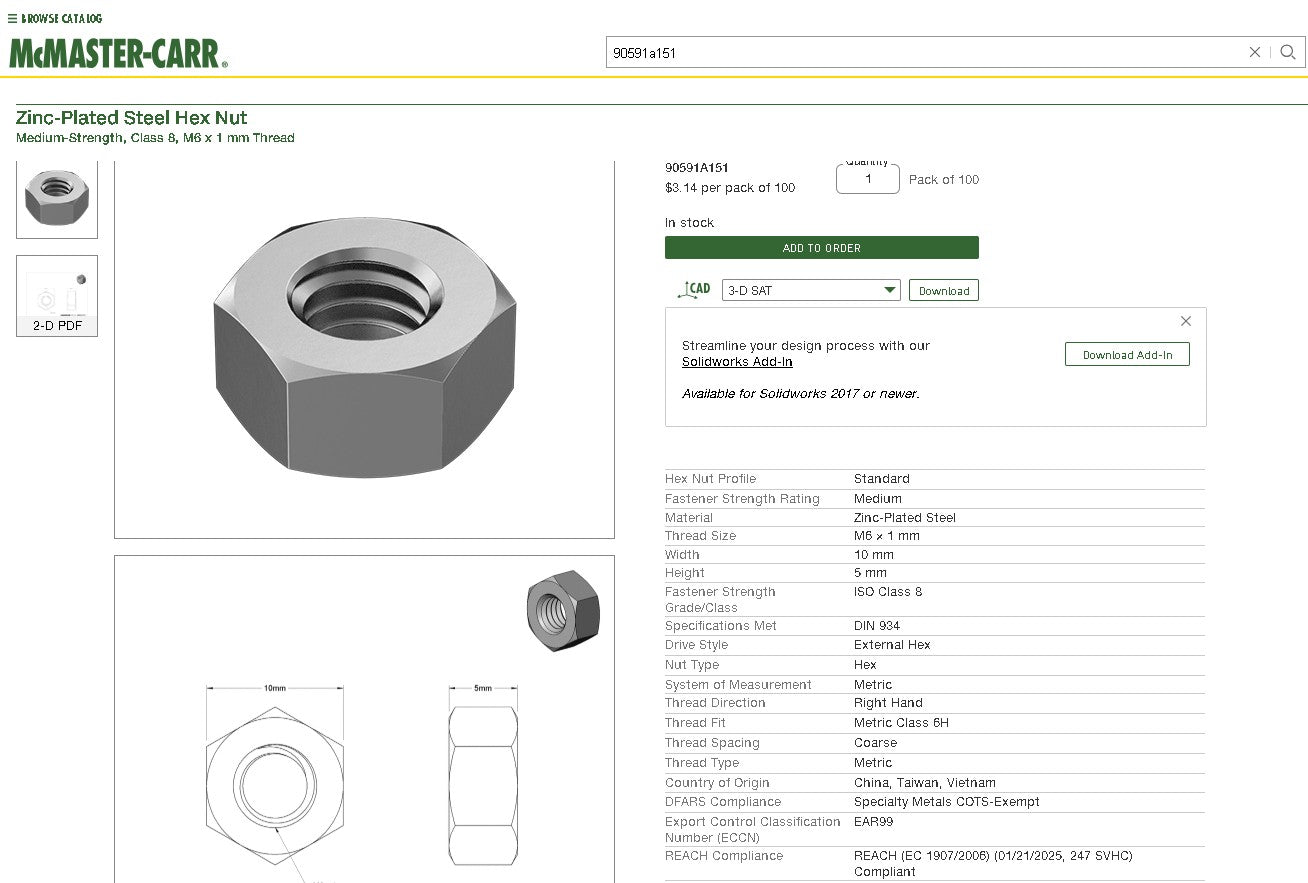

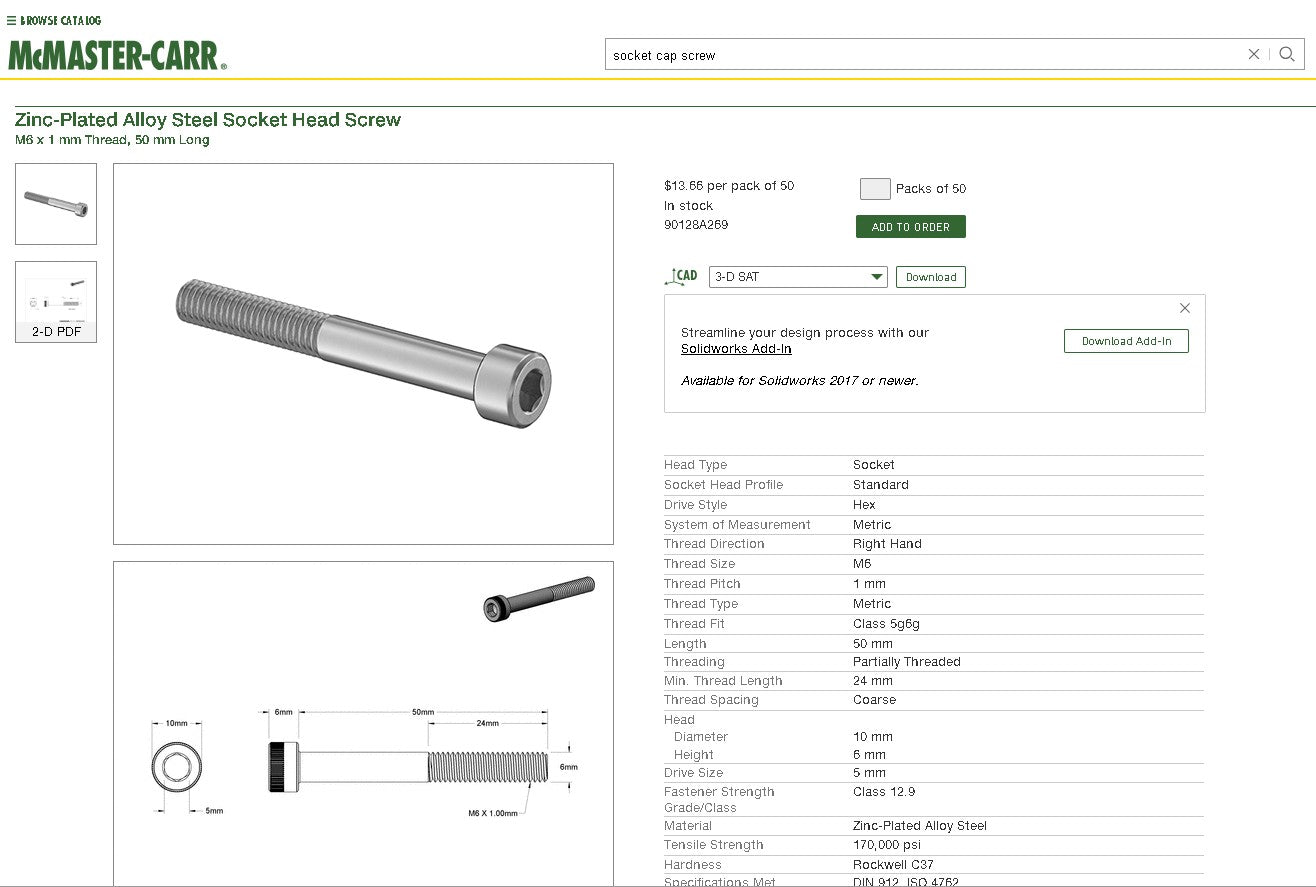

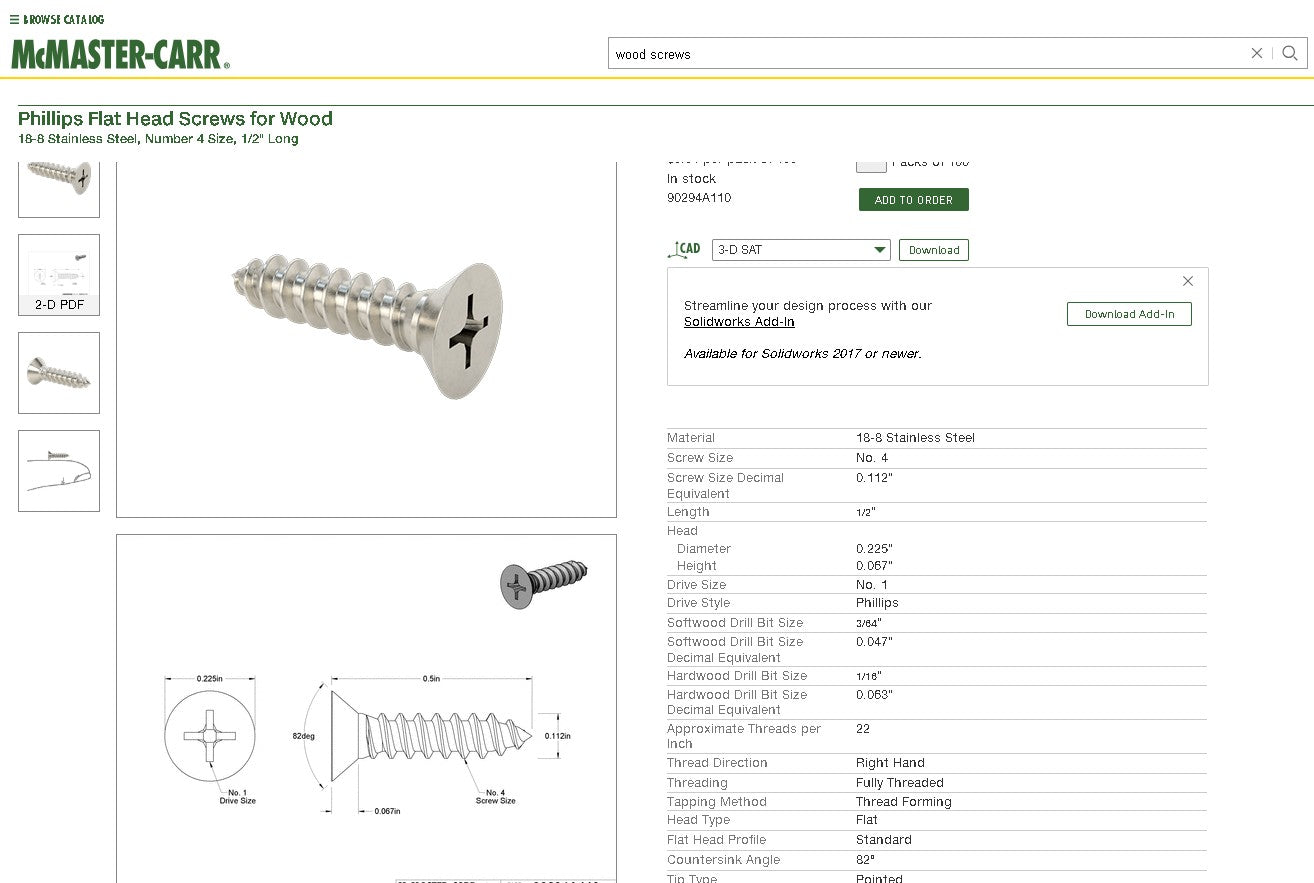

List of fasteners, dust brush, and magnets needed to finish the assembly
Assembly information

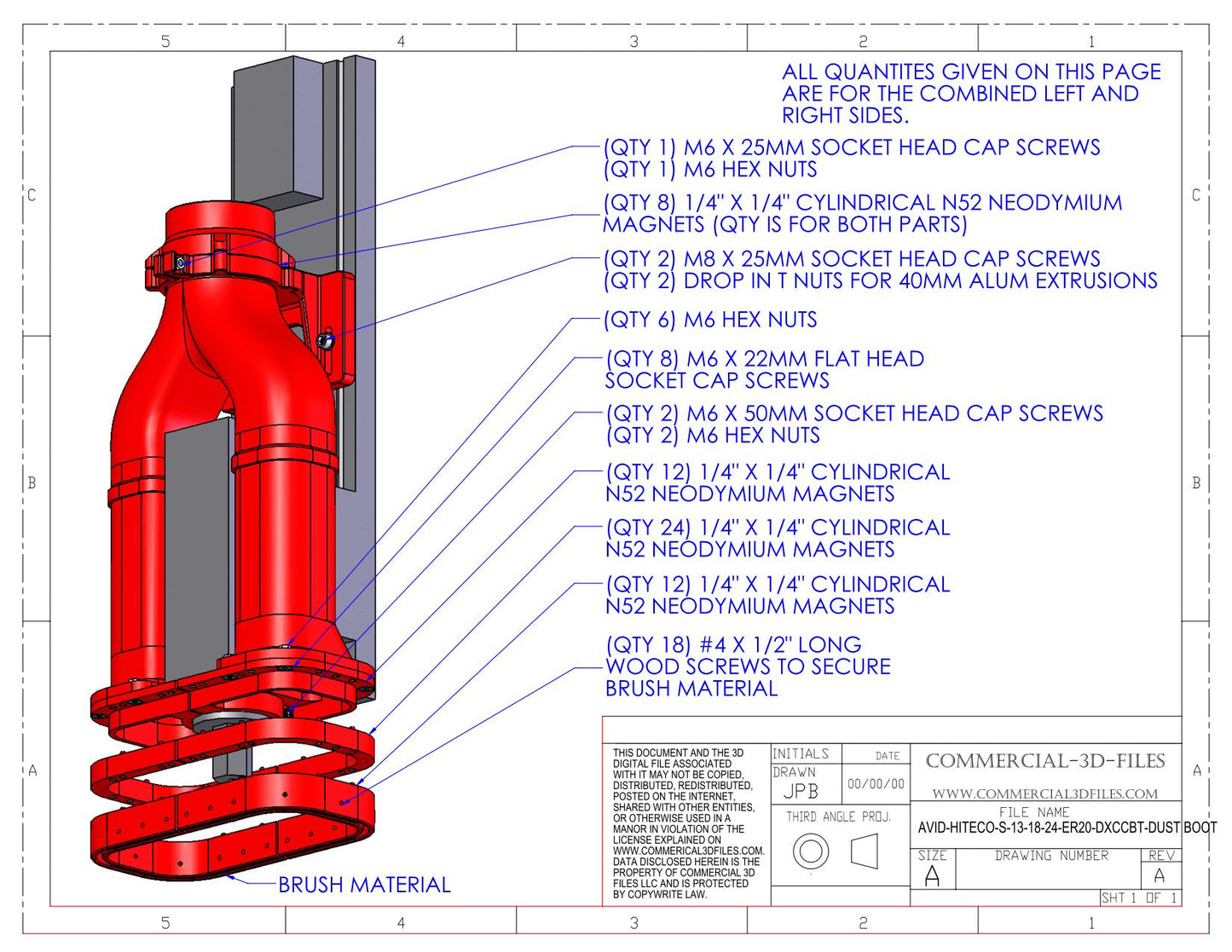

🛠 Recommended Hardware you’ll need to purchase (not included- see images):
Neodymium magnets
4” dust collection hose
Brush strip material (sized to fit standard holders)
Screws (if desired for extra security)
✅ Compatibility:

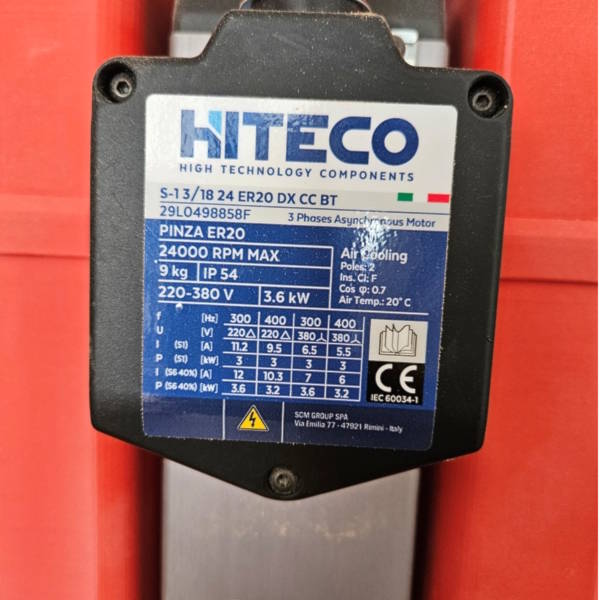

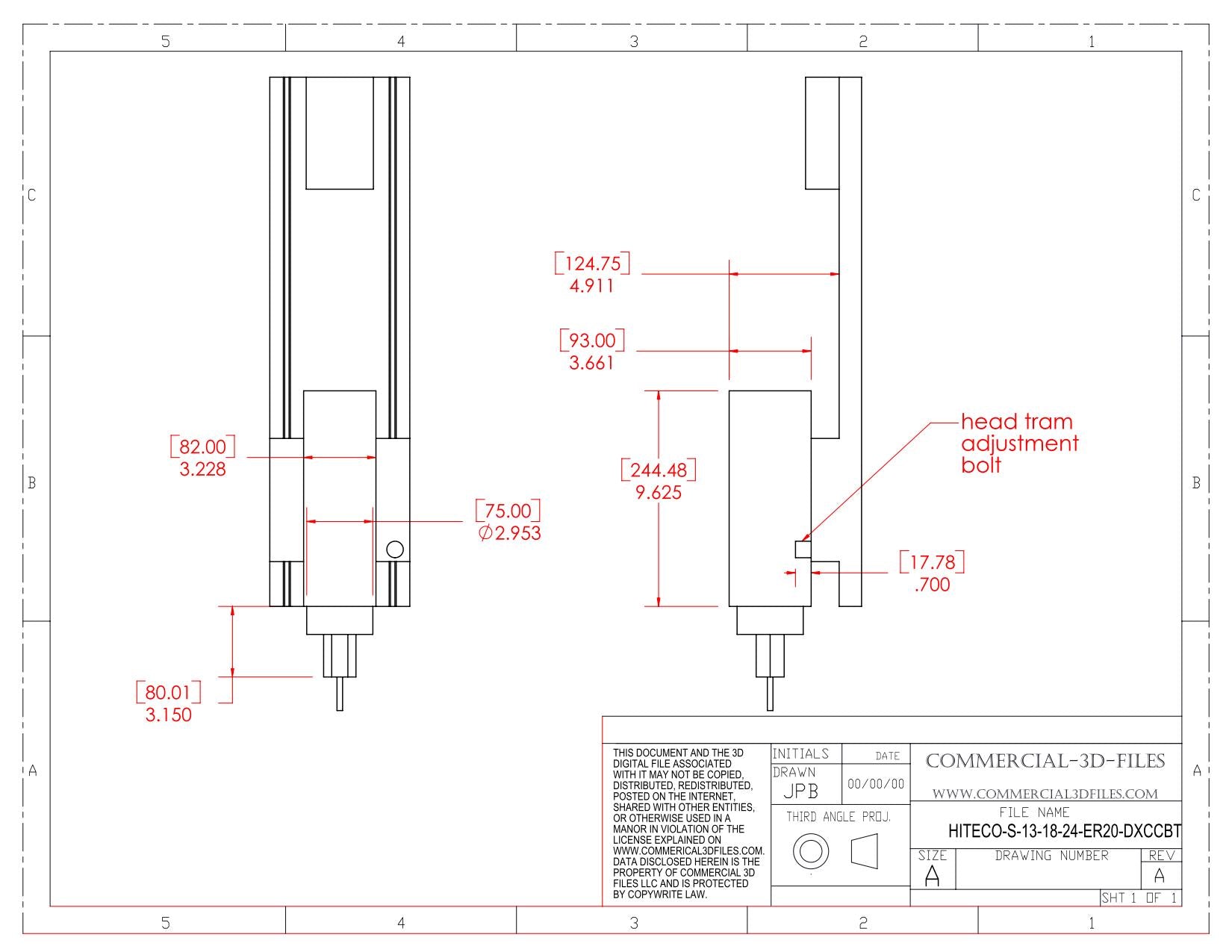

AVID CNC machines with HITECO-S-13-18-24-ER20 SPINDLE
4” dust collection hose like found on Amazon (see images)
💡 Why Choose This STL Design?
This is more than a dust boot — it's a modular dust management system that transforms your CNC workflow. Whether you're cutting hardwood, MDF, or plastics, this dust boot improves shop air quality, saves cleanup time, and enhances visibility and tool longevity.
See our other products under the Avid category to see other attachments for this system as well as estop holders and more for your Avid CNC.
